MT3 to MT2 Morse Taper Reducing Sleeve, MT3 Outside, MT2 Inside, Drill Chuck Connecting Adapter, for Wood Lathe, Milling Collet, Shank Adapter Part, 1pcs

Detailed Specifications:Name: Morse Taper Reducing SleeveMaterial: Alloy steel (40Cr). Overall heat treatedModel: MT3 to MT2Outer taper: MT3Inner taper: MT2Max Outer Diameter: 23.8mmInner Diameter: 17.8mmTotal Length: 112mmFunction: Fits MT2 taper shank tools into MT3 spindle taper holes.Installation:Insert the reducing sleeve into the spindle.Insert the drill bit into the sleeve and push inward firmly for self-locking.(Because the Morse taper angle is very small, the compression of the tapered surfaces generates significant normal pressure. This creates substantial friction, thereby achieving a self-locking effect.)Removal:Insert the matching taper drift (taper size of the connection surface) into the eject slot (sloped side facing the ejection direction).Tap the drift lightly with a hammer to eject the tool.Note:If the drill bit removal slot is not exposed after installation, remove the reducing sleeve from the machine first to expose the eject slot.Package Includes:1 * MT3 to MT2 Taper Reducing Sleeve

• 【Package Includes】 1pc MT3 (outer taper) to MT2 (inner taper) Morse taper reducing sleeve. Max OD: 23.8mm; ID: 17.8mm; Length: 112mm.
• 【Material】 Made of alloy steel (40Cr). Overall heat treated.
• 【Installation】 1. Insert the reducing sleeve into the drill press spindle. 2. Insert the drill bit into the sleeve and push inward firmly for self-locking.

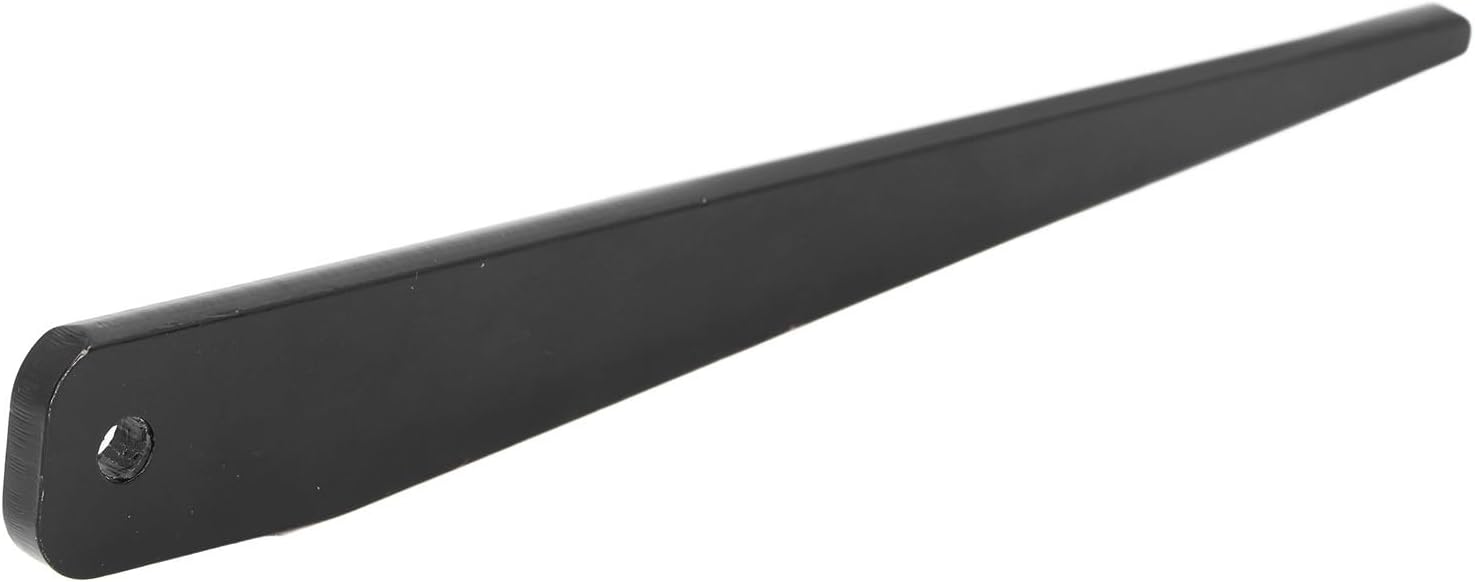

• 【Removal】 1. Insert the matching taper drift into the eject slot (sloped side facing the ejection direction). 2. Tap the tail of the drift lightly with a hammer to eject the tool.
• 【Application】 Allows MT2 taper shank tools to fit MT3 spindle taper holes. Suitable for drill bits, reamers, end mills, and other taper shank tools. Compatible with drill presses, milling machines, CNC lathes, etc.
