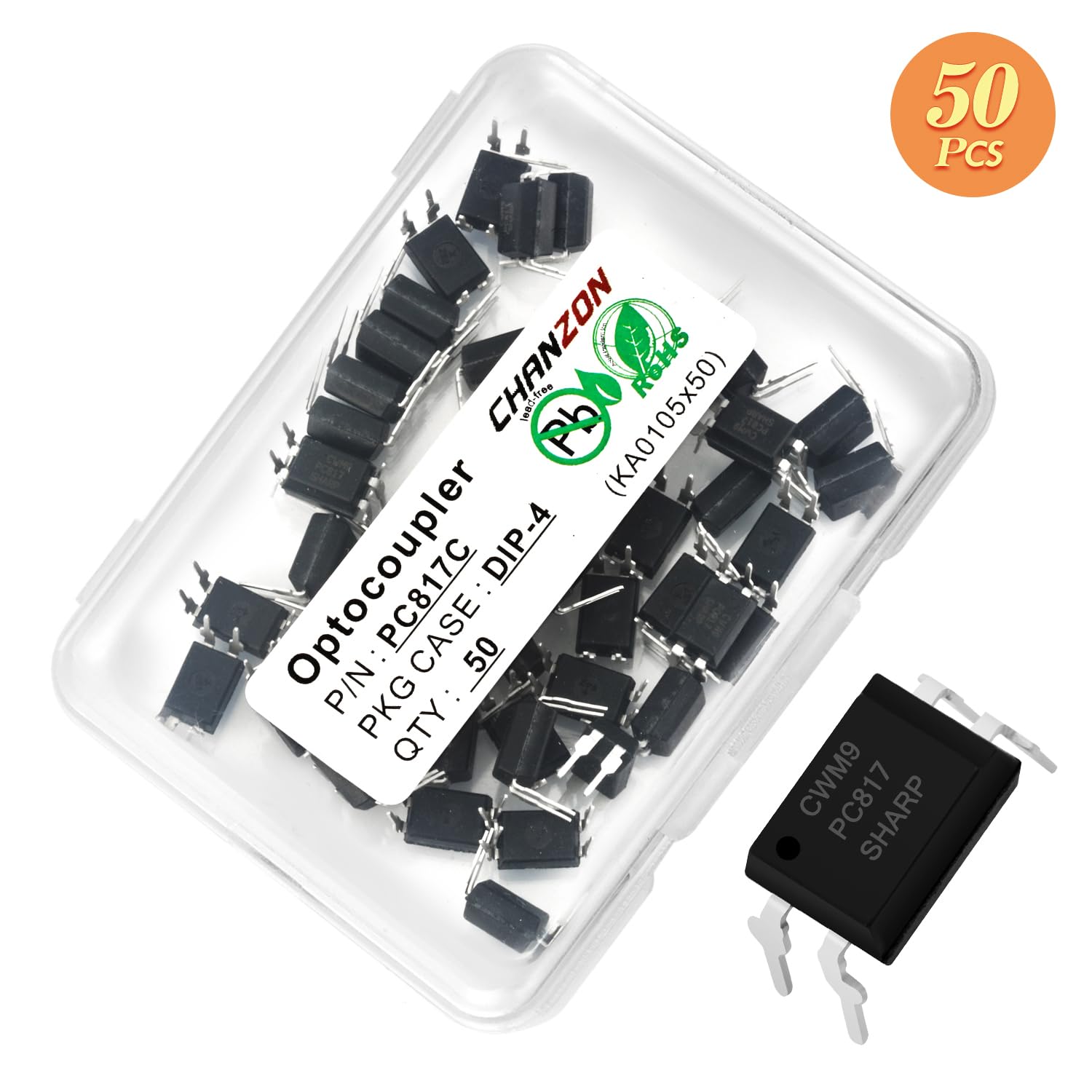

Chanzon 50pcs PC817C Phototransistor Optocoupler DIP Installation DIP-4
US$3.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.mckinlay.com.tr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$3.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.mckinlay.com.tr
Free 30-day returns Details
Product details
| Management number | 250270607 | Release Date | 2026/09/17 | List Price | US$3.20 | Model Number | 250270607 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PC817: Single-channel compact dual in-line package photocouplerCurrent transmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V);high isolation voltage between input and output is 5000V effective value.Forward current (ICEO): 50mAForward peak current (ICE max) :1AReverse voltage :6VPower consumption: 70mWCollector emitter voltage :35VEmitter collector voltage: 6VCollector current: 50mACollector power consumption: 150mWTotal power consumption: 200mWWorking temperature: -30℃~+100℃Collector emitter saturation voltage: 0.1V (typical value)
- Spec: 1-channel type, Transfer Ratio CTR Min.CTR 50% Max 600% (IF = 5mA, V = 5V),Isoration Voltage: 5000Vrms, Please see pic3-pic5 for detail parameters.
- Number of Pins: 4 pin(dip-4), Through Hole
- Package quantity: 50 pieces, packed in a durable and resealable plastic bag.
- Compatible with: EL817C/LTV817C/FL817C Optocouplers
- Used for: Opto isolator breakout circuit board, breadboard,arduino DIY, coupler replacement.
| ASIN | B0DJ8ZBHJ2 |
|---|---|
| Color | Black |
| Voltage | 5 volts |
| Terminal | Physical |
| Brand Name | CHANZON |
| Unit Count | 50 Count |
| Part Number | DGO-PC817C-DIP-4-50 |
| Switch Type | Dip Switch |
| Circuit Type | digital |
| Contact Type | Spdt |
| Manufacturer | CHANZON |
| Mounting Type | Through Hole |
| Control Method | Push Button |
| Current Rating | 50 milliamps |
| Item Highlight | CTR 50%-600% | Optical Isolator| Compatible with EL817C/LTV817C | For switching power supply circuit isolation |
| Operation Mode | manual |
| Operating Voltage | 5000 volts_of_alternating_current |
| Compatible Devices | Arduino |
| Number of Positions | 4 |
| Connector Type Used on Cable | Dip Pins |
